- Multi Axis Gyro Sensor
- Multi Axis Vibration Sensing
- Multi-point Temperature Sensing
- Edge-Computing
- Easy Mounting/ Plug and Play
- Lead times and delivery

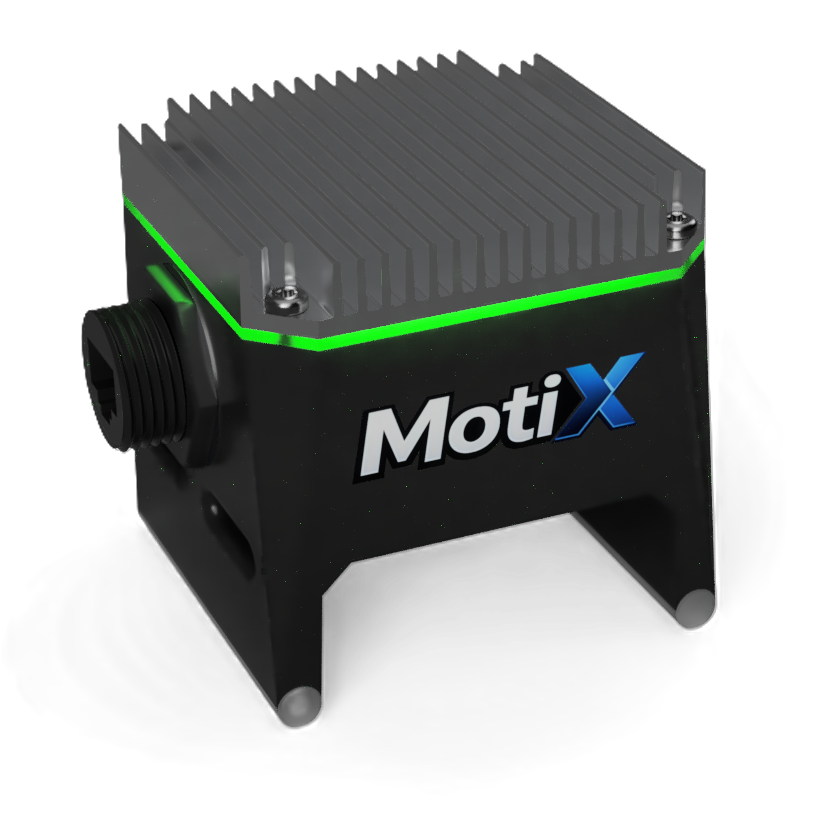

The All New MotiX Sensor
Cost Effective Equipment Monitoring IIoT Device
Capabilities
Lead Times
<100 units: 15 to 30 days
>100 units: 45 days
Additional Options
Add “MotoScope” for even more sensing capabilities in hard to reach places.
Specifications
Vibration: −4g → 4g / 3333Hz
Gyro: 3333Hz
Temperature Sensing: −20C → 140C
Operating Temperature: −40C → 100C
Power and Data: IEEE Standard PoE
Mounting: Strap or Clamp

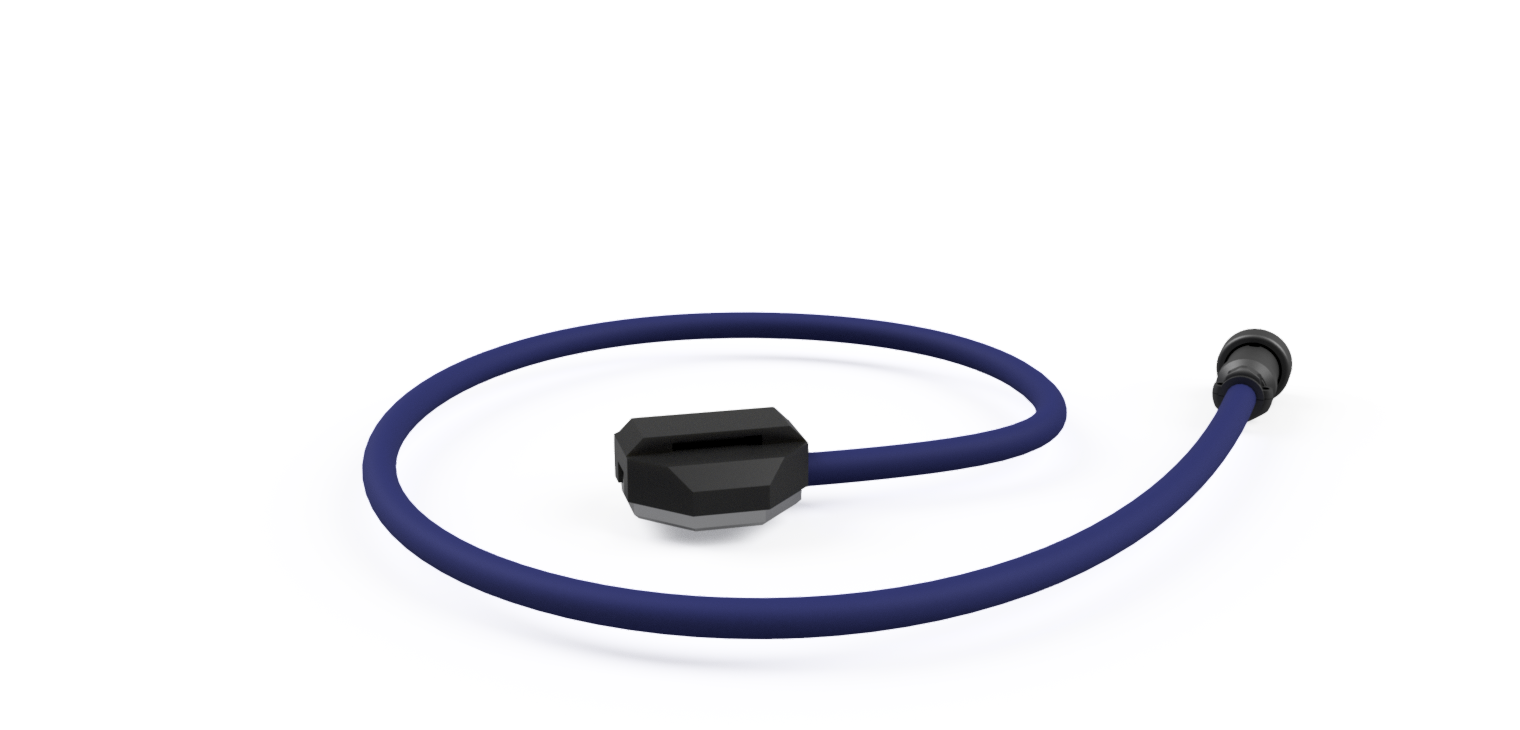

Datasheet and User ManualMotoScope Add-On
For hard to reach equipment monitoring. Perfect for Bearing, Spindle and Gearbox sensing.
MotoScope Capabilities
- Multi Axis Vibration Sensing
- High Frequency Bearing Monitoring
- Single point Temperature Sensing
- Compatible with MotiX base sensor unit
- Ultrasonic Fault Detection Capability
MotoScope Specifications
Vibration: −4g → 4g Acceleration + Ultrasonic Sensor to 50kHz
Gyro: 3333Hz
Temperature Sensing: −40C → 125C
Operating Temperature: −40C → 125C
Mounting: Strap, Clamp, or Epoxy
Datasheet and User Manual
